Rear big brake conversion notes for the A70 Supra using Mitsubishi Evo 5–9 rear Brembo calipers and Subaru WRX STi GD rear rotors.
Published 2026-07-04 22:29:32 · 36 views
Important: use Mitsubishi Evo 5–9 calipers only. Do not use Evo X / Evo 10 calipers, and do not use Evo 1–4 calipers for this guide.
Quick overview
| Base car | Toyota Supra MK3 / A70 rear axle |
|---|---|
| Calipers | Mitsubishi Lancer Evolution 5–9 rear Brembo calipers |
| Rotors | Subaru WRX STi AWD GD 2004–2006 rear rotors, 5x114.3 |
| Rotor centre bore | Enlarge from Subaru 58 mm to Toyota 60.1 mm |
| Parking brake | OEM A70 parking brake shoes fit inside the WRX STi rotor drum |
| Critical install detail | Bleed nipples must face upward after mounting the calipers |
Main parts needed
| Part | Notes | Part number |
|---|---|---|
| Mitsubishi Evo 5–9 rear Brembo calipers | Used/refurbished pair. Not Evo X and not Evo 1–3. | Check eBay / used parts suppliers |

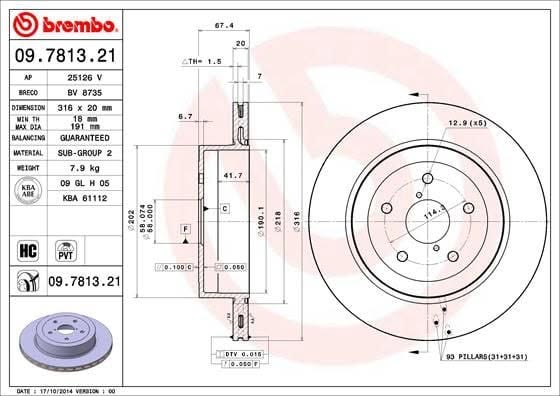

| Subaru WRX STi AWD GD rear rotors | Use 2004+ 5x114.3 rotors. Earlier pre-2004 rotors are commonly 5x100 and are not correct for this swap. | Subaru 26700FE050 / Brembo 09.7813.21 |
| Caliper mounting bolts | M10 x 30 | MR370730 |
| Brake pad pins | OEM Mitsubishi pins | MR475934 |
| Pad spring clips | OEM Mitsubishi clips | MR407382 |
| Parking brake shoes | Only needed if replacing the existing A70 parking brake shoes. | CENTRIC 11108510 or equivalent |
| Caliper rebuild kit | Optional, order two kits if rebuilding both calipers. | CENTRIC 14335031 x2 |
| Brake lines | Stainless lines were used here. Exact confirmed model/brand still needs confirmation. | To be confirmed |
| Brake fluid | Required after opening the brake system. | DOT fluid suitable for your setup |
Rotor preparation
- Start with Subaru WRX STi AWD GD 2004–2006 rear rotors.
- Double-check that the rotor is the 5x114.3 version. Pre-2004 Subaru rotors are often 5x100.
- Have the centre bore enlarged to 60.1 mm. The Subaru centre bore is 58 mm.
- Drill the access holes for the handbrake adjustment.
- Use the original A70/MK3 rotor as reference for the handbrake adjustment hole position and cap location.
- After drilling, refit the OEM-style rubber/plastic caps in the adjustment holes.
Installation steps
- Safely lift and support the car.
- Remove the original rear calipers and rotors.
- Clean the hub face properly with a steel brush so the new rotor sits flat.
- Check the dust shield. You may need to bend or trim part of it for clearance. Try bending before cutting.
- Inspect the parking brake shoes and hardware. Replace the parking brake shoes if necessary.
- Mount the prepared WRX STi rotors.
- Mount the Evo 5–9 Brembo rear calipers using suitable mounting bolts.
- Make sure the bleed nipples are facing upward. If the nipples point down, the calipers are on the wrong side and bleeding will not work correctly.
- Install the brake pads, pad pins and spring clips.
- Install the brake lines.
- Bleed the brake system thoroughly.
- Check for leaks, check rotor/caliper clearance, check wheel clearance and test the parking brake adjustment before road use.

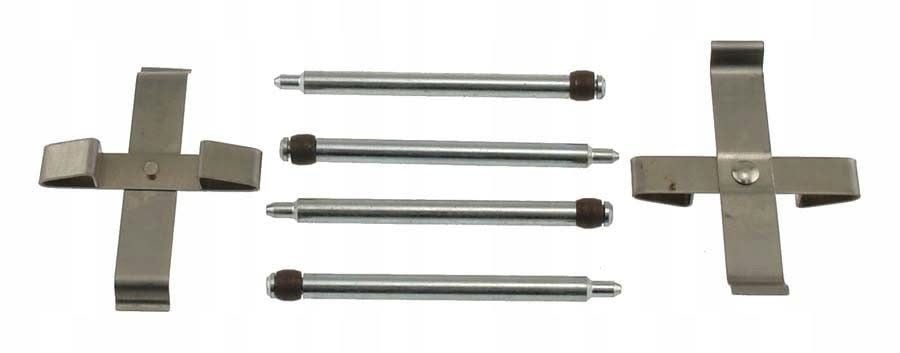

Brake pad pins and clips
| Item | OEM / aftermarket reference | Note |
|---|---|---|
| Caliper bolt | MR370730 | M10 x 30 |
| Pad pins | MR475934 | OEM Mitsubishi |
| Pad spring clips | MR407382 | OEM Mitsubishi |
| Parking brake shoes | CENTRIC 11108510 | Or equivalent |
| Caliper refurbish kit | CENTRIC 14335031 | Optional, use two kits for both calipers |
Useful links
- Brake pads — Mitsubishi 2004 Lancer 2.0 turbo RockAuto listing
- Rotor — Brembo 09.7813.21 RockAuto listing
- Parking brake shoes — CENTRIC 11108510 RockAuto listing
Complete shopping list
| Qty | Part | Reference |
|---|---|---|
| 2 | Mitsubishi Evo 5–9 rear Brembo calipers | Used / refurbished |
| 2 | Subaru WRX STi AWD GD 2004–2006 rear rotors, 5x114.3 | 26700FE050 / Brembo 09.7813.21 |
| As needed | Brake pads for Evo 5–9 rear Brembo calipers | Your choice |
| 4 | Caliper bolts | MR370730, M10 x 30 |
| 1 set | Pad pins | MR475934 |
| 1 set | Pad spring clips | MR407382 |
| 1 set | Parking brake shoes | CENTRIC 11108510, optional if replacing |
| 2 | Caliper rebuild kits | CENTRIC 14335031, optional |
| 1 set | Rear brake lines | Stainless/custom line setup, exact confirmed reference still needed |
| 1 | Brake fluid | As required |
Final checks: verify wheel clearance, rotor seating, brake line routing, parking brake adjustment and fluid leaks before driving. After the first short test drive, re-check all fasteners and inspect for rubbing.
