TSRM wire color codes
First letter = basic wire color. Second code = stripe color. Example: L-Y means blue wire with yellow stripe.
BBlack
BRBrown
GGreen
GRGray
LBlue
LGLight Green
OOrange
PPink
RRed
VViolet
WWhite
YYellow
Source ECU / loom
Compact overview only. Blank gaps are real connector spaces. Click a connector to show the larger detailed view below. Use the view-side button to mirror the connectors between ECU side and connector/loom side.
B1 — B1 dark grey
B2 — B2 dark grey
B3 — B3 dark grey
C1 — C1 dark grey
M1 — M1 dark gray
U1 — U1 dark grey
Detailed connector view
Source connectors one by one

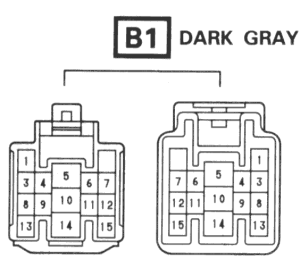

B1 — B1 dark grey
Pin list for B1 — B1 dark grey
Labels, signal names and notes for the selected connector.
| Pin | Label / signal | I/O | Function / description | Wire / req. | Links |
|---|---|---|---|---|---|
|
#1
cell 1,1
|
No label | — |
A/C Water Valve VSV |
— |
— |
|
•
cell 1,5
|
Empty / unused | — | — |
— |
— |
|
#3
cell 2,1
|
No label | — |
FP Signal (Check Connector) |
— |
— |
|
#4
cell 2,2
|
No label | — |
EFI Circuit Opening Relay Coil |
— |
— |
|
#5
cell 2,3
|
No label | — |
A/T Circuit Opening Relay Coil |
— |
— |
|
#6
cell 2,4
|
No label | — |
Fuel Pump Control Relay |
— |
— |
|
#7
cell 2,5
|
No label | — |
Circuit Opening Relay B+ |
— |
— |
|
#8
cell 3,1
|
No label | — |
NSW Switch to Cruise Control Clutch Switch (M/T) |
— |
— |
|
#9
cell 3,2
|
No label | — |
Check Engine Light |
— |
— |
|
#10
cell 3,3
|
No label | — |
Neutral Start Switch |
— |
— |
|
#11
cell 3,4
|
No label | — |
A/C Amplifier |
— |
— |
|
#12
cell 3,5
|
No label | — |
Theft Deterrent Horn Signal |
— |
— |
|
#13
cell 4,1
|
No label | — | — |
— |
— |
|
#14
cell 4,3
|
No label | — |
Ignition B+ |
— |
— |
|
#15
cell 4,5
|
No label | — | — |
— |
— |

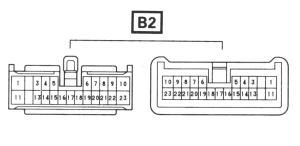

B2 — B2 dark grey
Pin list for B2 — B2 dark grey
Labels, signal names and notes for the selected connector.
| Pin | Label / signal | I/O | Function / description | Wire / req. | Links |
|---|---|---|---|---|---|
|
#1
cell 1,1
|
No label | — |
Air Bag Signal Check Connector |
— |
— |
|
#2
cell 1,2
|
No label | — |
Oil Level Signal Light (European Models) |
— |
— |
|
#3
cell 1,3
|
No label | — |
B- for ECT Speed Sensor Solenoid |
— |
— |
|
#4
cell 1,4
|
No label | — | — |
— |
— |
|
#5
cell 1,5
|
No label | — |
Solenoid 2 for ECT and Cruise Control |
— |
— |
|
#6
cell 1,9
|
No label | — | — |
— |
— |
|
#7
cell 1,10
|
No label | — | — |
— |
— |
|
#8
cell 1,11
|
No label | — |
"2" Signal ECT |
— |
— |
|
#9
cell 1,12
|
No label | — | — |
— |
— |
|
#10
cell 1,13
|
No label | — | — |
— |
— |
|
#11
cell 2,1
|
No label | — |
TC Signal for Air Bag / Cruise Control |
— |
— |
|
#12
cell 2,2
|
No label | — | — |
— |
— |
|
#13
cell 2,3
|
No label | — |
"L" Signal ECT |
— |
— |
|
#14
cell 2,4
|
No label | — |
Solenoid 1 |
— |
— |
|
#15
cell 2,5
|
No label | — |
Lockup Solenoid |
— |
— |
|
#16
cell 2,6
|
No label | — |
O/D 1 Signal ECT / Cruise Control |
— |
— |
|
#17
cell 2,7
|
No label | — | — |
— |
— |
|
#18
cell 2,8
|
No label | — | — |
— |
— |
|
#19
cell 2,9
|
No label | — | — |
— |
— |
|
#20
cell 2,10
|
No label | — |
IDL Signal from ECT / TCCS |
— |
— |
|
#21
cell 2,11
|
No label | — |
DG Signal ECT for Check Connector |
— |
— |
|
#22
cell 2,12
|
No label | — | — |
— |
— |
|
#23
cell 2,13
|
No label | — | — |
— |
— |

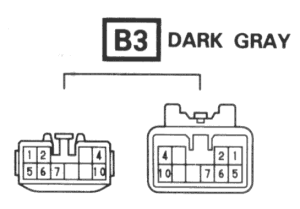

B3 — B3 dark grey
Pin list for B3 — B3 dark grey
Labels, signal names and notes for the selected connector.
| Pin | Label / signal | I/O | Function / description | Wire / req. | Links |
|---|---|---|---|---|---|
|
#1
cell 1,1
|
No label | — |
RR B+ for ABS |
— |
— |
|
#2
cell 1,2
|
No label | — |
PSEN for ABS |
— |
— |
|
•
cell 1,5
|
Empty / unused | — | — |
— |
— |
|
#4
cell 1,6
|
No label | — |
PPS Solenoid |
— |
— |
|
#5
cell 2,1
|
No label | — |
RR B- for ABS |
— |
— |
|
#6
cell 2,2
|
No label | — |
Speed Signal for ABS from ECT Computer |
— |
— |
|
#7
cell 2,3
|
No label | — |
"P" Signal for ABS |
— |
— |
|
•
cell 2,4
|
Empty / unused | — | — |
— |
— |
|
•
cell 2,5
|
Empty / unused | — | — |
— |
— |
|
#10
cell 2,6
|
No label | — |
PPS Solenoid |
— |
— |

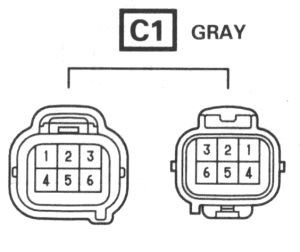

C1 — C1 dark grey
Pin list for C1 — C1 dark grey
Labels, signal names and notes for the selected connector.
| Pin | Label / signal | I/O | Function / description | Wire / req. | Links |
|---|---|---|---|---|---|
|
#1
cell 1,1
|
No label | — |
Battery Signal from 15A EFI Fuse |
— |
— |
|
#2
cell 1,2
|
No label | — |
M-Rel Coil Signal from ECU |
— |
— |
|
#3
cell 1,3
|
No label | — |
B+ from 15A Haz / Horn Fuse for Theft Deterrent Horn |
— |
— |
|
#4
cell 2,1
|
No label | — |
B+ from EFI Main Relay (via 15A EFI Fuse) |
— |
— |
|
#5
cell 2,2
|
No label | — |
B- for Air Flow Meter Switch |
— |
— |
|
#6
cell 2,3
|
No label | — |
A/C Water Temp Switch no. 2 |
— |
— |

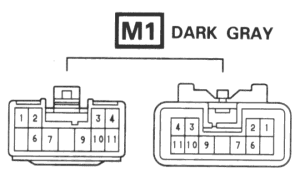

M1 — M1 dark gray
Pin list for M1 — M1 dark gray
Labels, signal names and notes for the selected connector.
| Pin | Label / signal | I/O | Function / description | Wire / req. | Links |
|---|---|---|---|---|---|
|
#1
cell 1,1
|
No label | — |
Backup Light Switch Signal |
— |
— |
|
#2
cell 1,2
|
No label | — |
B+ for Backup Light Switch and B+ for A/C Water Valve VSV |
— |
— |
|
#3
cell 1,6
|
No label | — |
SPD Signal from Combination Meter |
— |
— |
|
#4
cell 1,7
|
No label | — |
RPM Signal for Combination Meter |
— |
— |
|
#5
cell 2,1
|
No label | — | — |
— |
— |
|
#6
cell 2,2
|
No label | — |
Water Temperature Gauge B- for Combination Meter |
— |
— |
|
#7
cell 2,3
|
No label | — |
Oil Pressure Signal for Combination Meter |
— |
— |
|
•
cell 2,4
|
Empty / unused | — | — |
— |
— |
|
#9
cell 2,5
|
No label | — |
"W" Signal for Check Engine Light |
— |
— |
|
#10
cell 2,6
|
No label | — |
Water Temperature Signal for Combination Meter |
— |
— |
|
#11
cell 2,7
|
No label | — |
Signal from Defogger Relay |
— |
— |

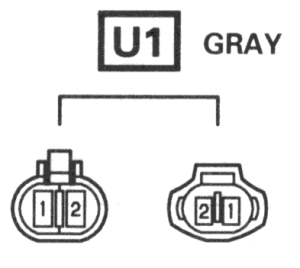

U1 — U1 dark grey
Pin list for U1 — U1 dark grey
Labels, signal names and notes for the selected connector.
| Pin | Label / signal | I/O | Function / description | Wire / req. | Links |
|---|---|---|---|---|---|
|
#1
cell 1,1
|
No label | — |
Theft Deterrent Horn Signal |
— |
— |
|
#2
cell 1,2
|
No label | — |
B+ for Theft Deterrent Horn |
— |
— |
