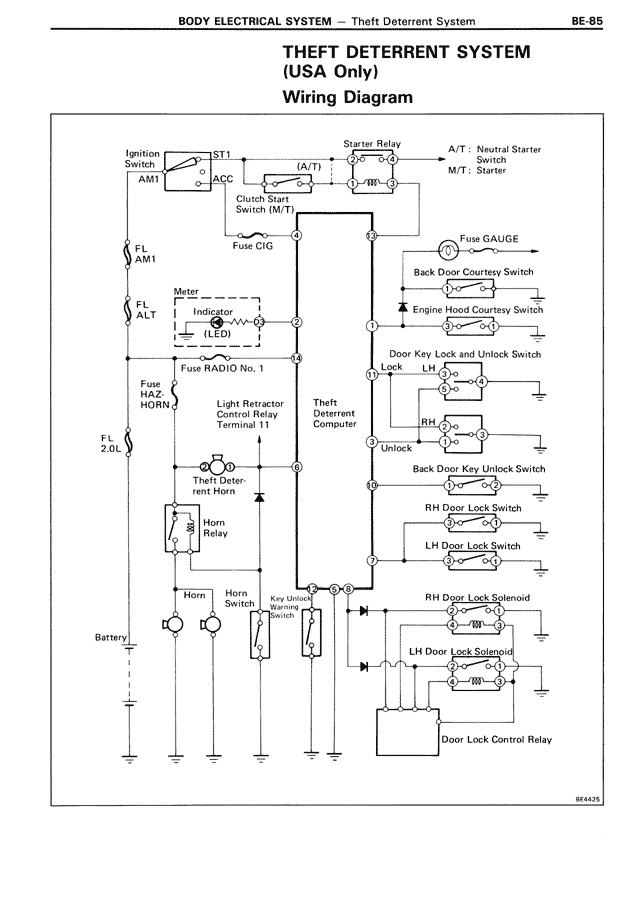

BE-085 Body Electrical System - BE-085
Page 85 of 116 in this section.
No English translated scan for this page yet, showing original.
Section navigation
116 pages · currently page 85.
Examples: 5 or -05.
Compare pages
Save pages while browsing, then open two side by side.
Select two saved pages in the list.
Section index
Index
BE-001
GENERAL INFORMATION
BE-002
PRECAUTIONS
BE-008
LOCATION OF SWITCHES AND RELAYS
BE-009
IGNITION SWITCH
BE-015
LIGHTING SYSTEM
BE-016
HEADLIGHT CLEANER (CANADA Only)
BE-029
WIPERS AND WASHERS
BE-031
COMBINATION METER
BE-036
REAR WINDOW DEFOGGER
BE-047
POWER WINDOW
BE-049
DOOR LOCK CONTROL SYSTEM
BE-051
REMOTE CONTROL MIRROR
BE-053
MIRROR HEATER
BE-054
POWER SEAT
BE-055
CRUISE CONTROL SYSTEM
BE-058
THEFT DETERRENT SYSTEM (U.S.A. Only)
BE-085
AUDIO SYSTEM
BE-101
CLOCK
BE-115
