No English translated scan for this page yet, showing original.
Section navigation
72 pages · currently page 71.
Examples: 5 or -05.
Compare pages
Save pages while browsing, then open two side by side.
Select two saved pages in the list.
Section index
Index
RA-01
TROUBLESHOOTING
RA-02
REAR WHEEL ALIGNMENT
RA-03
REAR AXLE HUB
RA-06
REAR DRIVE SHAFT
RA-16
DIFFERENTIAL
RA-23
Differential Case (Conventional 2 Pinion Type Differential)
RA-43
Differential Case (Conventional 4 Pinion Type Differential)
RA-46
Differential Case (Limited Slip Differential)
RA-49
Coil Spring and Shock Absorber
RA-57
No.1 and No.2 Lower Suspension Arms
RA-61
Upper Arm
RA-65
Strut Rod
RA-70

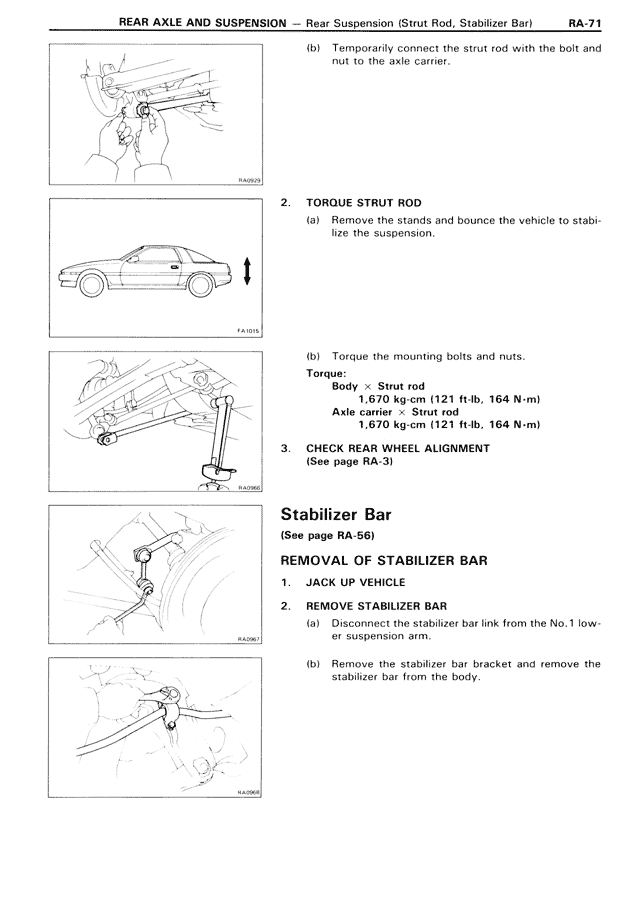

Stabilizer Bar
RA-71
